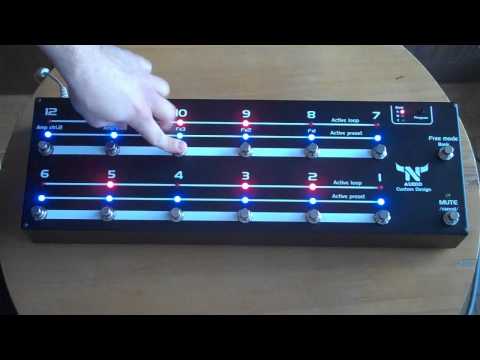

You use numerous effects, and you need a device to commute them with a true bypass? You want to be able to switch on and off several of them with the push of just one button? And you want the programming to be quick and simple? Then N-audio 12 channel programmable true bypass effects looper is your choice!
N-audio 12-channel programmable true bypass effects looper is a floor-based switching system for musicians. It is based on a microcontroller with а built-in flash memory, which can store user-defined presets. Switching is implemented with the help of relays, which allow for true bypass switching on the way of the signal from the passive input to the amp-out output. This looper allows for switching up to 36 user-defined presets using up to 10 different guitar effects from the effect chain and 2 amplifier controls.
This new 12 channel looper has Free mode feature. This great feature is a useful functional option which allows you to remove or add effects to a previously programmed preset.
Specifications:
• 12 loop channels
• True bypass switching
• 36 independent presets stored in 3 banks
• Free mode for faster and more flexible work
• Fast and easy programming with just one button
• Double reinforced heavy duty footswitches
• High quality gold plated relays
• Passive and buffered guitar inputs
• Tuner output
• External pedal insert point between effects loops 4 and 5
• 2 jacks for amp control for channel switching
• Additional loop channels for 3 more effects in the amp’s effects loop chain
• Power consumption at 18VDC – 350mA
• Dimensions: 500(W) x 160(D) x 55(FH) x 70(RH) mm
• Weight 3.3 kilograms
• Warranty: 3 years warranty
Dispatch time: one month after order
N-audio can make your custom 12 channel programmable true bypass looper. For more information, please contact us.
